Description

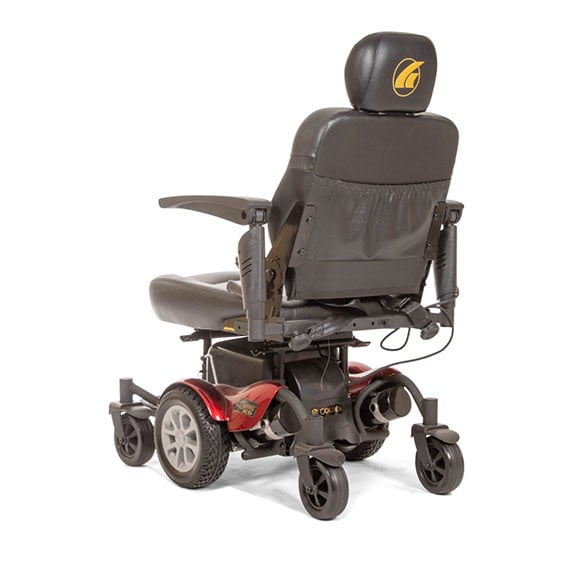

The Golden Compass HD offers you a stable, center-wheel-drive platform and an articulating chassis for stability over tough terrain. A bigger, beefier version of the popular Compass Sport, the Compass HD has a 450 lb. weight capacity, yet a modest 20-inch turning radius. It comes standard with a captain’s seat and our exclusive fold-flat seat hinge design for easy transport.
The Compass HD features front and rear height-adjustable seat posts, padded flip-up armrests, an easy-to-use sliding seat bracket and a fully adjustable footplate. With this lineup of features, the Golden Compass HD can take you to places you could only imagine!
Features
- Standard captain’s seat with our exclusive fold-flat seat hinge design
- Optional seating includes ProFlex Seat and van/pan seat
- Exclusive slide seat mechanism for easy seat removal and attachment
- 450 lb. weight capacity
- Adjustable headrest and armrests
- 75 amp peak Dynamic Shark controller standard
- Off-board charger
- Accessories available: elevating leg rests, specialty leg supports, swing-away footrests, footplate extender
- Uses 22NF batteries
- Model Number: GP620
Specifications
General
Weight Capacity450 lbs
Speed4 mph
Operating Range112 miles
Turning Radius20"
Maximum Incline6 degrees
Ground Clearance3.5"
ColorsRed, Blue
ChargerOff Board
Controller75 Amp
Battery2-NF22
FootrestYes
Angle adjustable0 – 35 degrees
Height adjustable3" - 7"
Dimensions
Width25"
Length40"
Ground to Top of Seat21.25" - 24.25"
Height (ground to top of back of seat)38.25" - 42.75"
Size of Increments0.5"
Number of Seat Height Positions5
Weight
Assembled226 lbs.
Base101 lbs
Heaviest Piece101 lbs.
Without Batteries152 lbs.
Seat37 lbs
Seat w/Arms51 lbs.
Battery37 lbs./each
Tires
TypeFlat Free
Drive WheelsCenter 2 x 10"
Casters4 x 6"
Seat
StyleCaptain’s Highback
ColorCoffee/Sand, Charcoal/Gray
Width x Depth20" x 20", 22" x 20", 24" x 20"
Back Height - no headrest21"
Back Height - with headrest28.5" - 32.5"
Warranty
Frame5 Years
Drive Train13 Months
Battery12 Months
Electronics213 Months
1. Battery range will vary due to rider weight, drive surface, terrain, and battery type.
2. Electronics warranty excludes batteries.
