Description
A Complete Stairlift

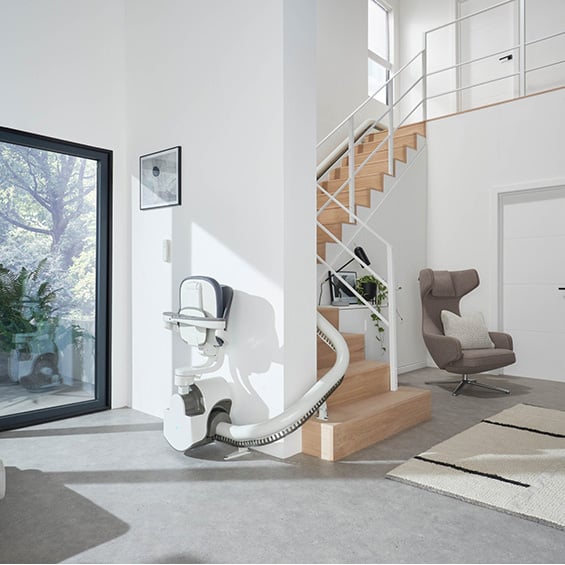

The Flow X is designed to fit on narrow staircases, whether they are straight or curved. Fitted to your staircase and not your wall, the Flow X is installed quickly and efficiently, with minimum disruption to your home and blending into your home seamlessly. Choose between a range of fabrics including vinyl, fabric and leather. Contact us for more information about the Flow X.
- Stairlift Seat
Ergonomically designed, the chair has a large backrest and seat area. A five-degree seat recline promotes a natural and healthy posture to meet your comfort needs.
- Feel Confident
Designed and tested to the highest standards (Machinery Directive 2006/42/EC and EN 81-40), to give full confidence as you move around your home. The Flow X has manufactured innovative armrests which provide several key benefits. They have an ergonomically-tapered form, designed to give you extra support both when standing and sitting. The Flow X stairlift also provides a unique open-access armrest position, making transferring to a stairlift even easier.
- Craftsmanship
The Flow X stairlift is our most complete curved stairlift. It has been designed to blend innovation with an inspiring contemporary design by Pearson Lloyd.
When you choose the craftsmanship of Flow X, you ensure a superior fit for you and your home. You receive a sleek, contemporary lift with options tailored to you, with all mechanical elements elegantly kept out of sight.
When you choose the Flow X stairlift, you ensure the best fit for your home
- Call Device: Stay connected with friends and family with up to three different telephone numbers contactable directly from your stairlift.
- Joystick: With a comfortable soft-touch grip, the integrated joystick is designed for you to fold away neatly in the armrest when not in use.
- Seatbelt: Flow X’s one-handed operation seatbelt and wrap-around armrests keep you secure throughout. A seatbelt detection system is a standard feature that ensures that you are properly secured before starting your journey.
- Ergonomic armrests: Flow X’s innovative armrests provide several key benefits. They have an ergonomically-tapered form, designed to give you extra support both when standing and sitting. And thanks to the unique open-access armrest position, transferring to a stairlift has never been easier.
- Single rail design: Even in cases where the staircase is narrow and steep, with a single discreet rail, the Flow X can be installed closer to the step and on either side of the staircase. Your stairlift will be less obtrusive, and your staircase will remain accessible for other family members in your home.
Features
- Ergonomically designed chair with large backrest and seat for outstanding comfort.
- Unique automatic folding seat and footrest (optional).
- Pre-adjustable seat height (4 different positions).
- Upper surface of arms in anti-slip, soft-touch nylon.
- Patented swivel during travel (ASL technology).
- Footrest independent of drive (less knee flexion).
- Flame retardant PC-ABS material. Metal parts in durable epoxy powder coating.
- Easy-to-operate, foldable joystick.
- Weight capacity 125kg at +/- 72°
- Cast aluminium motor frame with flame retardant ABS covers.
- Brushless main motor 24V DC, 3 phase 0.35 Kw
- Soft start and soft stop.
- Microprocessor-controlled main motor and levelling system (SIL2).
- Batteries 2 x 12V, 7Ah.
- Cast alumininum base including top TPE anti-slip surface.
- Linked seat and footrest.
- Armrest position detection.
- Retractable seatbelt with optional detection.
- Unique anti-squeeze safety sensors located under the seat.
- Safety covers protect the area between rail and motor.
- Overspeed control.
- Self-levelling control at +/- 5°.
- Emergency Lowering Button (electronic operation) located on the armrest
- Call device in the armrest (communication module) providing two-way telephone communication (optional).
- Emergency stop button.
- Maximum length of 35 metres.
- 80mm diameter rail.
- Epoxy powder coating in 4 standard RAL colours. Other RAL colours optional.
- Rail supports fixed to stairs and floors.
- Horizontal start, parking bends and vertical starts.
- Charge contacts on the rail, wiring hidden through the rail.
- Maximum angle of 72°.
Specifications
General
Weight Capacity125 kg / 275 lbs
SpeedMax 0.15 m/s / 29m/min
Drive SystemRack and Pinion
Incline LimitsUp to 70º
Electrical Requirements115~230V AC, 50/60Hz
Battery2 x 12 V batteries; total 24V
Remote ControlJoystick control as standard
Safety StandardsMachine Directive 2006/42/EC BS EN 81-40
Safety DevicesRetractable Safety Belt
Warranty
Motor/GearContact your local store for information
Dimensions
Overall Width24"
Folded Width14"
Height of SeatAdjustable. 4 positions 20-23in from floor to top of the seat
Depth of Seat17.7"
Floor to Seat Height20.2-22.9"
Footrest Width11"
Footrest to Floor2.7"
Armrest24"
