Description

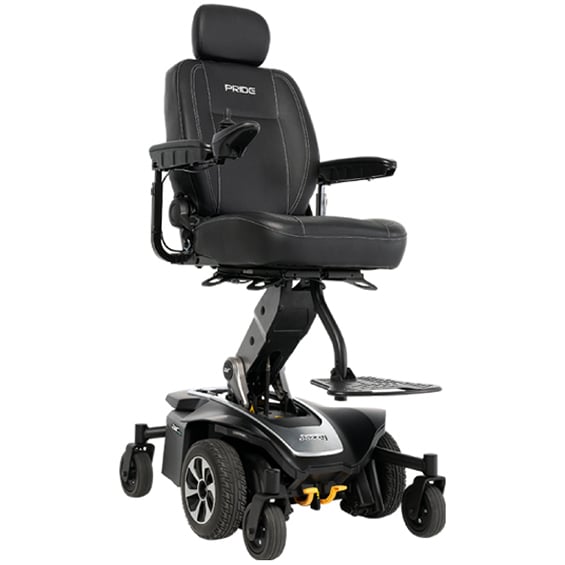

Elevating up to 12", the Jazzy Air MED offers users greater functionality in completing activities of daily living. This medical device drives safely up to 3.71 mph while elevated and produces a smooth ride, indoors or out, thanks to Active-Trac Suspension.
Engineered for a New Era of Seat Elevation
It’s time to take your mobility experience to the next level. What does that mean, exactly? Let the Jazzy Air MED explain.
In the literal sense, this dynamic power wheelchair elevates up to 12 inches. But what you can accomplish with that extra foot of height can elevate you far more than that.
Activities of daily living become much more manageable with the Jazzy Air MED. Countertops, kitchen sinks, and other surfaces are well within reach. And transferring to your bed, sofa, or other chair is easier than ever.
That’s what it means to elevate your life. To get started, consult with your doctor or health care provider to see if this medical device is right for you.
Built to Keep You Moving, Indoors or Out
Like all Jazzy models, you can count on industry-leading performance here. The Jazzy Air MED drives safely up to 3.71 mph whether elevated or not, and you can cruise up to an impressive 14.1 miles at 220 lbs. on a single charge of the battery.
Thanks to Active-Trac Suspension with Mid-Wheel 6 technology, you’re in for a smooth, comfortable ride in a variety of indoor and outdoor environments. And depending on your needs, it’s available in both captain and solid seat pan seating.
The Power Chair in Rare Air
This is the next generation of power seat elevation. Imagine what the Jazzy Air MED can do for you around the house and beyond. Engineered to help you get the most of your everyday life, it’s here to take your mobility experience to the next level.
*Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments
Features
- 12" of power adjustable seat height
- Up to 4.4 mph
- Top speed of up to 3.71 mph, both in elevated and non-elevated positions
- 300 lbs. weight capacity
- 24.4" turning radius
- Active-Trac Suspension with Mid-Wheel 6 technology provides maximum stability in a variety of environments
- Battery range of up to 14.1 miles at 220 lbs. and 13 miles at 300 lbs.
- Non-scuffing, flat-free tires (10" drive wheels, 6" caster wheels)
Specifications
General
Weight Capacity300 lbs
Speed1Up to 3.71 mph
Operating Range1,4Up to 13 miles at 300 lbs.; Up to 14.1 miles at 220 lbs.
Turning Radius224.41"
SuspensionActive-Trac with Mid-Wheel 6 Technology
Ground Clearance20.98" at motor bracket
DrivetrainTwo motor, Mid-Wheel 6 drive
ColorsBlack
Charger5 amp, off -board
Battery3Two 12-volt, sealed lead-acid, non-spillable deep-cycle U-1 batteries
Braking System"Intelligent Braking" electronic regenerative, disc park brake
Dimensions
Width2,623.25"
Length2,641.54"
Ground to Top of Seat222" - 24"
Weight
Assembled300 lbs.
Without Batteries5197.2 lbs
Battery522.2 lbs. (10.1 kg) each
Tires
TypeFlat free
Drive Wheels10"
Casters6"
Seat
Stylecaptain OR solid seat pan seating
ColorBlack
Power Elevating Seat OptionYes
Warranty
Frame5-year limited
Drive Train13-month limited
Battery13-month limited
Electronics13-month limited
1. Varies with base model, user weight, terrain type, battery amp hour rating (Ah), battery charge, battery condition, motors, controller type, tire type, and tire condition. This specification is subject to a variance of +10%, -5%.
2. Due to manufacturing tolerances and continued product improvement, this specification can be subject to a variance of (+ or -) 3%.
3. AGM, Gel-Cell, Lithium-Ion, or Hybrid Gel (Hybrid Gel is defined as Nano Silica Gel Electrolyte with High Quality Glass Mat Separators) type required. See III. "Batteries and Charging."
4. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
5. Battery weight may vary based on manufacturer.
6. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
