Pride Mobility
FDA Class II Medical Device*

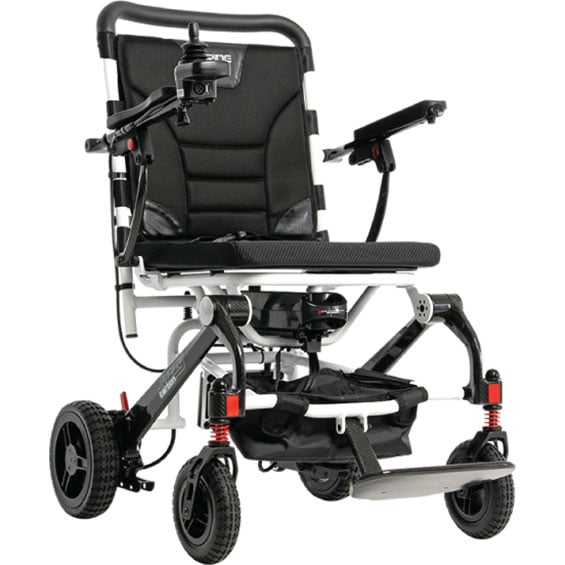

Jazzy Carbon Power Chair

Model: Jazzy Carbon
*Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments
Mobility Plus Jazzy Carbon Power Chair
Mobility Plus Jazzy Carbon Power Chair
Mobility Plus Jazzy Carbon Power Chair

Description

With carbon fiber technology, the Jazzy Carbon Power Wheelchair becomes your greatest travel companion.

You know Jazzy for its industry-leading performance and quality. Now let’s talk about portability.

Jazzy Carbon uses ultralight but exceptionally strong carbon fiber technology for its frame and a lightweight, reliable lithium-ion battery.

Travelers keep their Jazzy Carbon charged and standing by for spontaneous jet-setting adventures. They know it breezes through airport security, easily stows on the plane and gives them the mobility support they need to make the most of their travels.

Weighing in at a stunning 43.6 pounds, Jazzy Carbon still provides top speeds up to 3.7 mph with a weight capacity of 300 pounds.

When does a folding power chair also put comfort first?

Jazzy Carbon folds down in just a few quick motions, which makes it easier to transport in cars, planes and trains. But don’t let portability fool you. Jazzy Carbon has tall, terrain-dominating wheels and a front-end suspension system, plus a comfy seat cushion to sustain you through everything your busy day throws at you.

Maybe you’re taking a weekend trip to visit the grandkids, and they’ve got your Saturday booked with stops at all their favorite places.

Or maybe you and your pals are taking a once-in-a-lifetime trip to an all-inclusive resort, and you don’t want to miss a single moment of it.

Jazzy Carbon gives you mobility and control to do it all.

Features

  • 300 lb. weight capacity
  • Removable joystick for transporting with built in USB charger
  • Airline compliant lithium battery
  • Front suspension for a smooth ride
  • Ultra-lightweight, carbon fiber frame specifically designed for traveling
  • Compact base easily folds and unfolds for easy transport in a few easy steps
  • Padded seat back with storage pocket and soft, removable seat cushion for all-day comfort
  • Free-wheel levers to easily disengage the brake allowing this lightweight power chair to be pushed like a manual chair
  • Included under-seat storage and adjustable lap belt
  • When folded 28.3" x 12.2" x 24"

Specifications

General
Weight Capacity300 lbs
Speed13.7 mph
Operating Range29.3 miles
Turning Radius124"
SuspensionFront
Ground Clearance32"
Drivetrain24v/250W Brushless motors
ColorsBlack, White
ChargerOff-board, 2-amp lithium-ion
Battery24V 12AH (288WH)
Braking SystemRegenerative and electro-mechanical
Dimensions
Width324"
Length337"
Ground to Top of Seat20.75"
Weight
Assembled3,546.3 lbs
Heaviest PieceUnit folds and doesn't disassemble
Battery4 lbs
Tires
Rear8.5"
Front7"
Seat
StyleFoam
ColorBlack
Width x Depth17" x 17"
Folded Width12.2
Warranty
FrameLifetime Limited
Drive Train1 Year Limited
Battery1 Year Limited
Electronics1 Year Limited
1. Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition, and tire condition. This specification can be subject to a variance of (+ or -) 10%.
2. Tested in accordance with ANSI/RESNA, MC Vol2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
3. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or -) 3%.
4. Battery weight may vary based on battery manufacturer.
5. Includes standard seat weight.
