FDA Class II Medical Device*

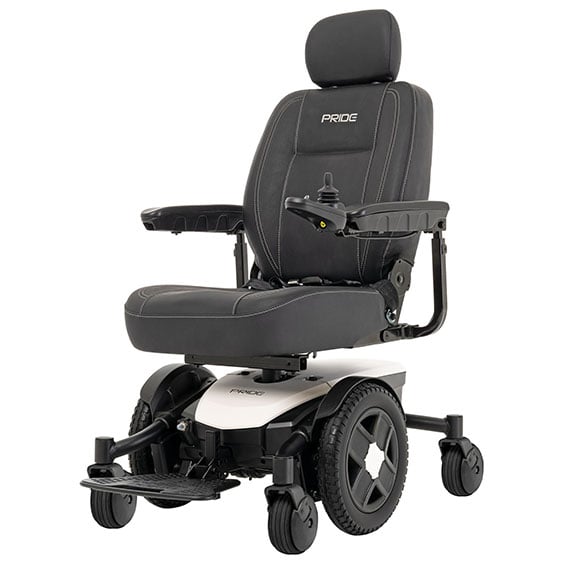

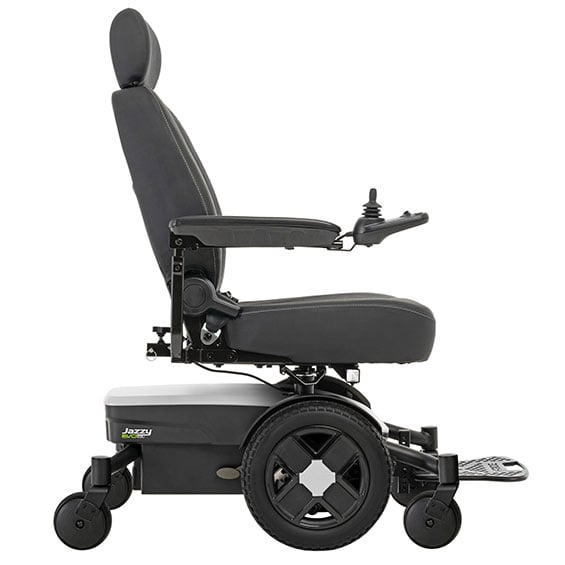

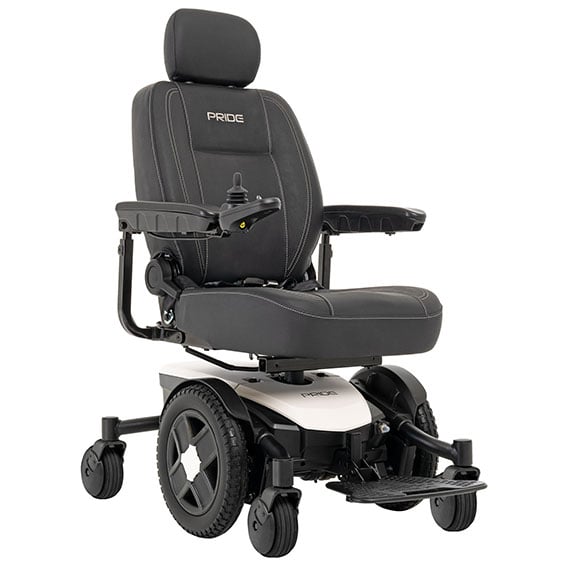

Jazzy Evo 613 Li Power Chair

Model: Jazzy EVO 613 Li

To call find your location

*Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments

Mobility Plus Jazzy Evo 613 Li Power Chair

Description

The Jazzy EVO 613 and Jazzy EVO 613Li measure in at an impressive 22 inches wide at the base and offer a 22-inch turning radius. Not only is it one of the most powerful power wheelchairs on the market, but it’s also one of the narrowest and most maneuverable.

The Jazzy EVO 613 series gives you all the best that Pride has to offer with patented Active-Trac Suspension and exclusive Mid-Wheel 6 Technology that provide you with a smoother, stable ride.

The Jazzy EVO 613 series of power wheelchairs with lithium batteries represent a philosophy we share here at Pride Mobility. If you’re not constantly improving, ever innovating, and pushing boundaries, you might as well fall behind.

The Jazzy EVO 613 stands on the shoulders of the industry-defining designs of its forebearers. Powerful lithium batteries last longer, charge faster and weigh less. The Jazzy EVO 613 has a futuristic design, with edgy lines and sharp colorways, giving you extra confidence.

Features

300 lb. weight capacity
Narrow base width of only 22"
Maximum speed up to 5.1 mph
3" Ground clearance for
13" solid drive tires
Per charge range up to 17 miles with U1 SLA batteries and up to 21 miles with lithium ion (200 lbs.)
Mid-wheel 6 Technology offers tight turning radius around doorways and corners
Pride's patented Active-Trac (ATX) Suspension ensures a smooth ride experience over uneven surfaces
Memory foam high-back seat with single seat post allows the user to swivel
Available depth-adjustable seat sizes: 16" W x16"-18" D, 18" W x 18"-20" D, 20" W x 18"-20"
Height, width, and angle adjustable armrests
Flip-up, height, angle, and depth adjustable foot platform
Removable matte-finish color-through shrouds

Specifications

General

Weight Capacity300 lbs

Speed²5.1 mph

Operating Range^2,3,5SLA- up to 14 miles (300 lbs.), up to 17.1 miles (200lbs,); Lithium up to 17.6 miles ( 300 lbs.), up to 21 miles (200lbs.)

Turning Radius³22"

SuspensionActive-Trac (ATX)

Ground Clearance³3" at motor bracket

DrivetrainTwo motor, in-line, mid-wheel drive

ColorsBlack (matte), White (matte), Red (matte), Iceberg Blue (matte), Robin's Egg Blue (matte), Sugar Plum (matte)

ChargerOff Board

Controller40A, PG GC3

Battery⁴(2) 12 volt, U-1 or (1) 25V Lithium-iron phosphate

Braking SystemRegenerative and electro-mechanical

Dimensions

Width³22"

Length³41" w/footplate 35" w/o footplate

Ground to Top of Seat20.5" - 22.5"

Weight

Assembled189 lbs. . (SLA); 160.5 (Lithium)

Heaviest Piece94 lbs.

Seat³46 lbs. (16"), 48 lbs (18"), 50 lbs. (20")

Battery⁶(2) U1-23.5 lbs. each; (1)Lithium - 18.5 lbs.

Tires

Front5" solid

Drive WheelsMiddle 13" solid

Casters5" casters

Seat

Width x Depth20" x 20"

Back Height - no headrest16"x16"-18", 18"x18"-20", 20"x18"-20"

Warranty

Frame5-year limited

Drive Train13-month limited

Battery13-month limited

Electronics13-month limited

1. Jazzy Power Chairs are FDA class II Medical Devices designed to aid individuals with mobility impairments

2. Varies with user weight, terrain type, battery amp-hour(AH), battery charge, battery condition and tire condition. These specifications can be subject to a variance of (+/- 10%).

3. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+/* 3%).

4. AGM or gel cell type required.

5. Tested in accordance with ANSI/RESNA, WC Vol2, section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.

6. Battery weight may vary based on manufacturer.

7. Weight includes base, seat and batteries.
