Pride Mobility
FDA Class II Medical Device*

Jazzy Evo 614 Power Chair

Model: Jazzy EVO 614
*Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments
Mobility Plus Jazzy Evo 614 Power Chair
Mobility Plus Jazzy Evo 614 Power Chair
Mobility Plus Jazzy Evo 614 Power Chair
Mobility Plus Jazzy Evo 614 Power Chair
Mobility Plus Jazzy Evo 614 Power Chair

Description

Jazzy EVO 614 Unlocks New Mobility Possibilities

When we imagined the Jazzy EVO 614 power wheelchair, we thought about all the opportunities that come only once.

Your grandchild only graduates from high school once. You might only ever get one chance to take an Alaskan cruise with your high school friends. Your favorite play is showing for one weekend only at the local theater.

Will you be there?

Life is filled with important moments that are special. The Jazzy EVO 614 power chair ensures you never miss an instant. Embrace new possibilities.

Built for your Adventures

The Jazzy EVO 614 is your ultimate mobility alternative. With new 13.75-inch perforated center drive wheels, a 3" ground clearance and new top speed of up to 4.4 mph, it's built for crossing the threshold for everyday use.

At just 22- inch, Jazzy EVO 614's turning radius comes in under two feet, which means your power wheelchair more easily navigates tight turns indoors and in your favorite shops and restaurants.

More Options to Customize your Ride

You want color options, and Jazzy EVO 614 has them. Interchangeable shrouds come in six striking colors.

Don't give up on those once-in-a-lifetime moments. Contact us today and start your own adventure.

Features

  • 300 lb. weight capacity
  • Up to 4.4 mph
  • 22" turning radius
  • Up to 19 miles at 300 lbs., 21.5 miles at 200 lbs.
  • New! Depth adjustable, limited recline memory foam high-back seat with headrest and single seat post allows the user to swivel

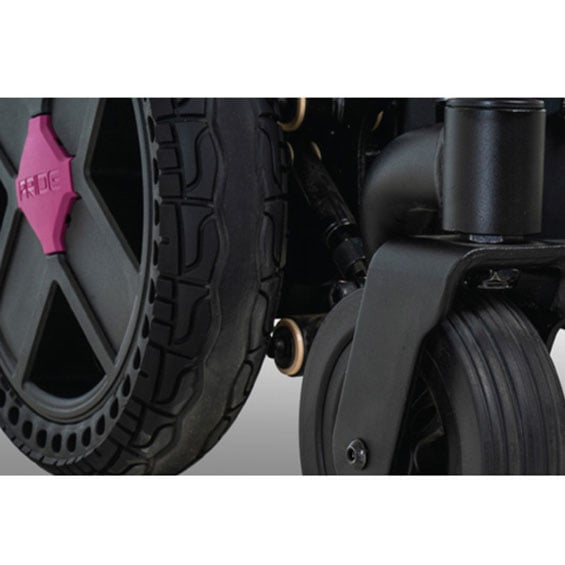

  • New! 13.75" perforated drive tires

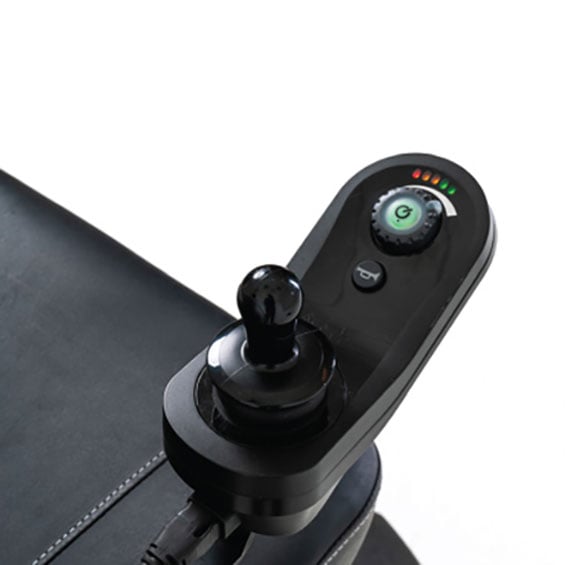

  • New! 60-amp Dynamic LiNX Adjustable joystick speed dial enables you to adjust your speed comfort level
  • New! Removable matte finish color through shrouds and 6 colors

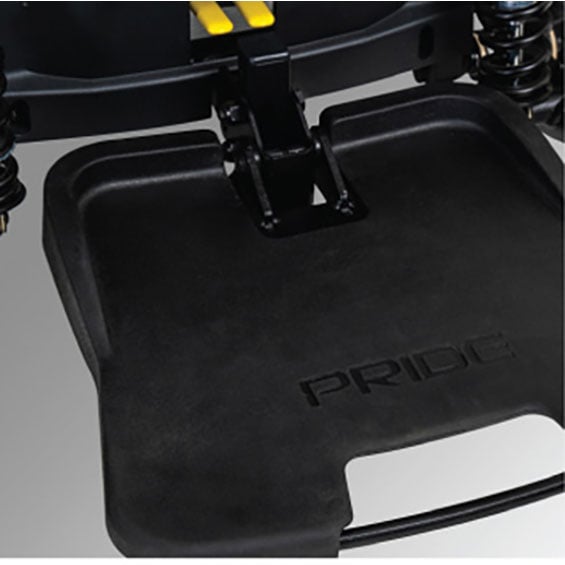

  • Flip-up, height adjustable foot platform
  • Full independent front and rear Active-Trac ATX Suspension for enhanced performance over more varied surfaces such as thresholds, gravel, and grassy terrains
  • In-line joystick mount
  • Convenient access to the controller and batteries while the user remains seated

Specifications

General
Weight Capacity300 lbs
Speed14.4 mph
Operating Range1,4Up to 19 miles at 300 lbs.; Up to 21.5 miles at 200 lbs.
Turning Radius222"
SuspensionFull independent front and rear Active-Trac (ATX) Suspension
Ground Clearance23" at motor bracket
DrivetrainTwo in-line HD motors
ColorsBlack (matte), White (matte), Red (matte), Iceberg Blue (matte), Robin's Egg Blue (matte), Sugar Plum (matte)
Charger5-amp, off-board
Battery4(2) NF-22
Braking SystemRegenerative and electro-mechanical
Dimensions
Width225.4"
Length240.5"
Ground to Top of Seat222" - 24"
Weight
Assembled6255.5 lbs.
Base5125.7 lbs.
Seat557.8 lbs.
Battery5(2) 36 lbs. each;
Tires
Type2Perforated
Drive Wheels2Middle 13.75"
Casters26"
Seat
Back Height - no headrest216"x16" - 18", 18"x18" - 20", 20"x18" - 20"
Warranty
Frame5-year limited
Drive Train13-month limited
Battery13-month limited
Electronics13-month limited
1. Varies with user weight, terrain type, battery amp-hour(AH), battery charge, battery condition and tire condition. These specifications can be subject to a variance of (+/- 10%).
2. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+/* 3%).
3. AGM or gel cell type required.
4. Tested in accordance with ANSI/RESNA, WC Vol2, section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
5. Battery weight may vary based on manufacturer.
6. Total weight includes base, seat and batteries.
