Description

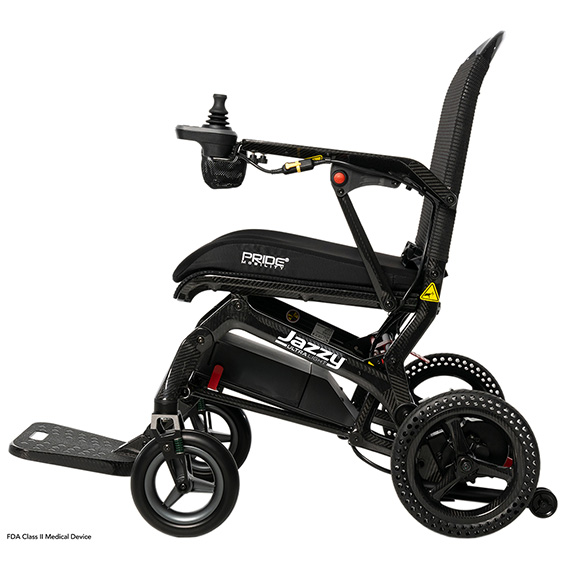

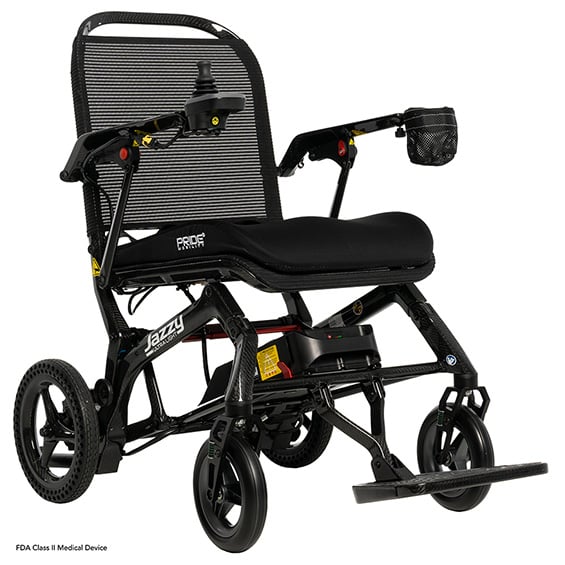

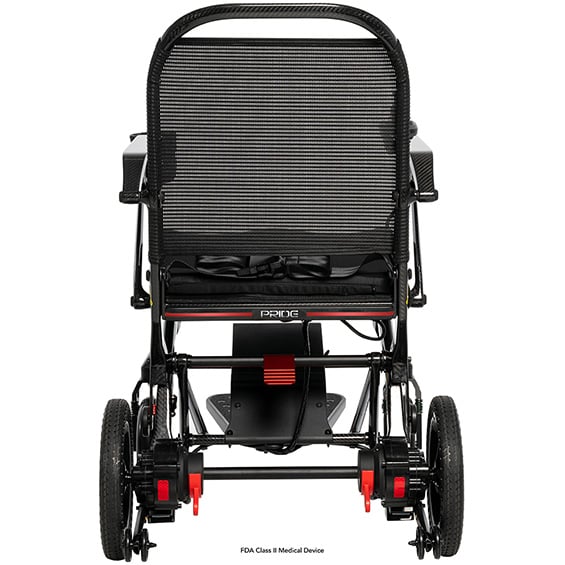

Pride is thrilled to introduce the Jazzy Ultra Light, the latest foldable power wheelchair whose name tells you the story – it weighs a remarkable 33 pounds without the battery.
This is made possible by an all-carbon fiber frame, which is durable enough to withstand all your customers' travels, but light enough to make every trip a cool breeze, whether through airports, on cruise ships, or just around the block.

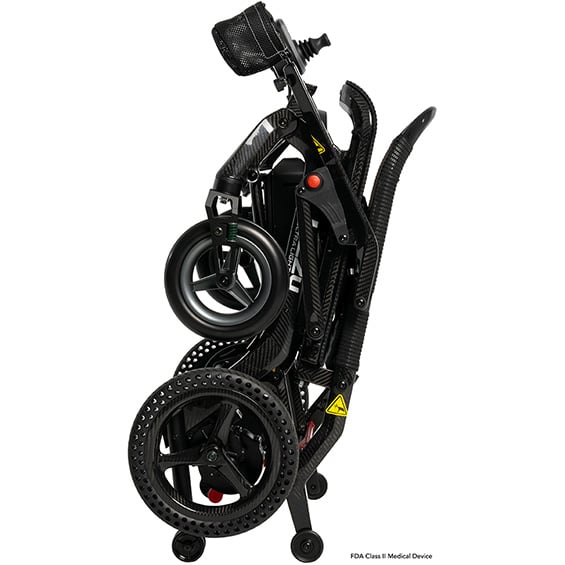

It takes just seconds for the Jazzy Ultra Light to fold, and with an audible "click", you can be assured the unit is locked into position for transport and storage. And it unfolds just as quickly to get your customers moving again in no time.
With every innovation, Pride continues to redefine the potential of travel mobility. Contact your Mobility Plus Sales Representative for more details.
Features
- Easy fold design that locks into a folded position
- Weighs just 33 pounds without the battery
- Mesh back and seat with standard cushion for extra support
- Durable all-carbon fiber frame
- Powered by an airline compliant** lithium battery (10Ah only)
- 300-lb. weight capacity / 16.4-mile battery range at 200 lbs. with optional 20Ah battery
- Programmable joystick controller can attach to either armrest
- Ground clearance of 2"
- Front suspension to ensure a smooth ride over various terrain
- Compatible with our new Jazzy Travel Bag
- Rear lights illuminate when unit is in motion
- Mesh cup holder comes standard
- Available with optional headrest and attendant control bracket handle
Specifications
General
Weight Capacity300 lbs
Speed2Up to 3.69 mph
Turning Radius333.19"
SuspensionSuspension Caster Forks
Ground Clearance32.17" at motor
DrivetrainTwo motor, rear-wheel drive
ColorsBlack
ChargerOff Board
Battery410Ah, 25.2V Lithium-ion, 20Ah, 25.2V Lithium-ion
Braking System"Intelligent Braking" electronic regenerative, disc park brake
Dimensions
Width324.49"
Length340.91"
Weight
Assembled438 lbs. with 10 Ah Battery, 40 lbs. with 20 Ah Battery
Without Batteries433 lbs.
Battery610Ah Battery: 5 lbs., 20Ah Battery: 7 lbs.
Tires
Rear310.71" Flat free
Front310.71" Flat free
Drive WheelsRear
Casters8" Flat free
Seat
Warranty
Framelifetime limited
Drive Train1-year
Battery13-months
Electronics1-year
1. Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments.
2. Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition and tire condition. These specifications can be subject to a variance of (+/- 10%)
3. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or - 3%).
4. AGM or gel cell type required.
5. Tested in accordance with ANSI/RESNA, WC Vol2, section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
6. Battery weight may vary based on manufacturer.
