Description
WHY CHOOSE PILOT?

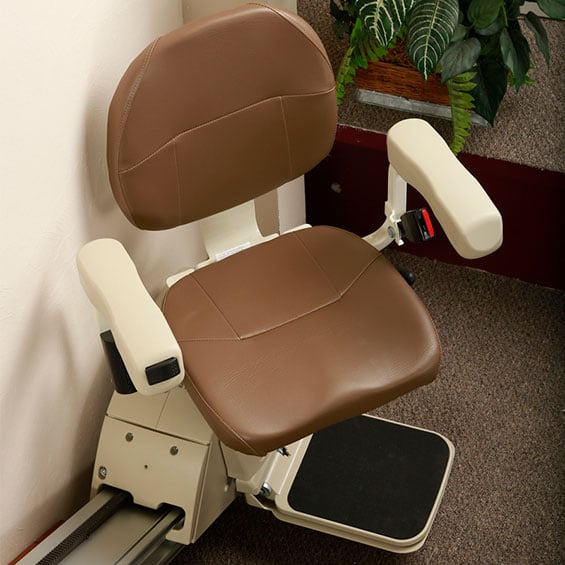

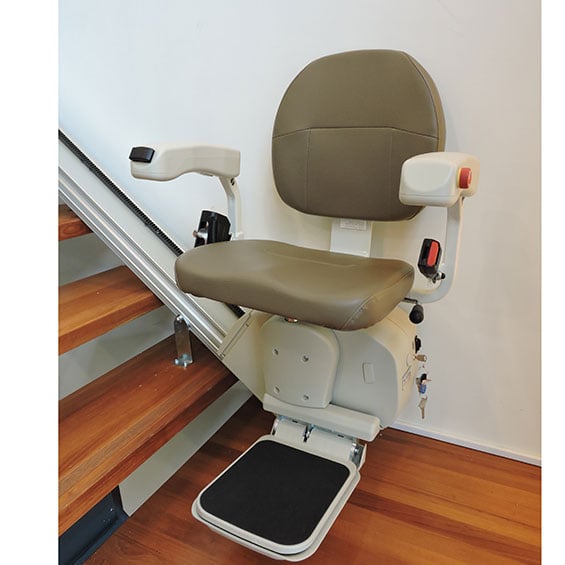

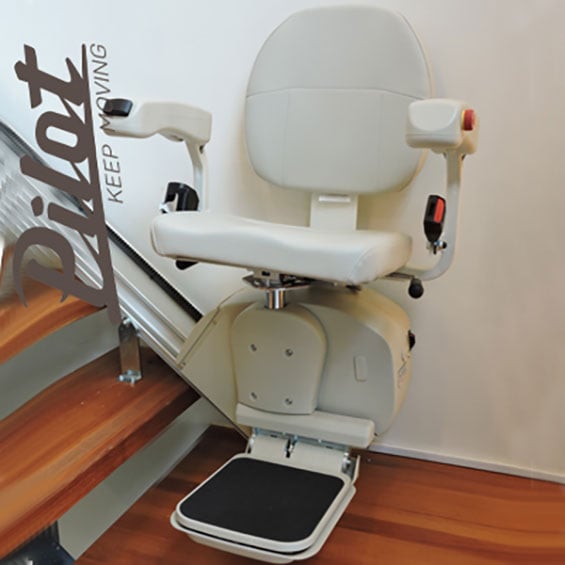

At Pilot, we understand the challenges a staircase can present and we are passionate about helping people maintain their freedom and independence in the home they love. The Pilot Aviator, for straight staircases, offers a great combination of style, safety, and comfort.
VERSATILITY
- The universal design allows the lift to be installed on the
left or right side of the stairs
- Armrest width, seat height and toggle position are fully
adjustable to meet the user’s needs
- 2 position swivel seat for safe transfers on and off the lift
FUNCTIONALITY
- Extra long charging stations make charging the powerful 9Ah batteries easy
- In the event of a power outage, the Aviator’s automatic sleep mode will preserve the batteries for up to 20 days!
- Equipped with a battery test point, diagnostic display and
easy access panels for fast, accurate services
SAFETY IS THE STANDARD
- 5 directional safety sensors
- Retractable seat belt
- Armrest position sensors
- Seat position sensor
- Over speed governor
- Electro mechanical brake
- Key switch
AUTOMATIC HINGED RAIL
Pilot’s auto folding rail option keeps the walkways clear when not in use.
The fully automatic system ensures that the rail is always in the right position, making the operation for the user a breeze.
OUTDOOR UNIT
The Aviator outdoor has been completely weatherized to withstand the elements.
Each unit Is supplied with:
- 2 lockable, wall mounted boxes for the remotes
- A weatherproof charger box
- Weather resistant cover to protect the unit when
not in use
OPTIONS
- Hinge
- Extended Footplate (2”)
- Extended Seat Post (2”)
- Extended Stair Brackets (6”)
- DC Charger Extension (8ft)
- Available in 3 upholstery colors
Features
- Weight Capacity 350lbs
- Flip-up Seat, Armrests and Footplate
- Smooth, quiet operation with soft start/stop technology
- Flip-up Seat, Armrests and Footplate
- Comes with 2 reprogrammable remotes
- Retractable seat belt
- Fully re-handable in minutes
- Compact design folds to 13' from the wall and less than 8' track intrusion
- Warranty 5-Year Motor/Gear Box 2-Year on Components
- Available in three colors Beige, Brown or Red Upholstery
Specifications
General
Weight Capacity350lbs (300 lbs with Hinge option)
Speed20-fpm ~ 6M/min
Drive SystemRack and Pinion
Incline Limits25º - 55º
Control Circuit950W, 24VDC
Electrical Requirements115~230V AC, 50/60Hz
Battery24VDC re-chargeable

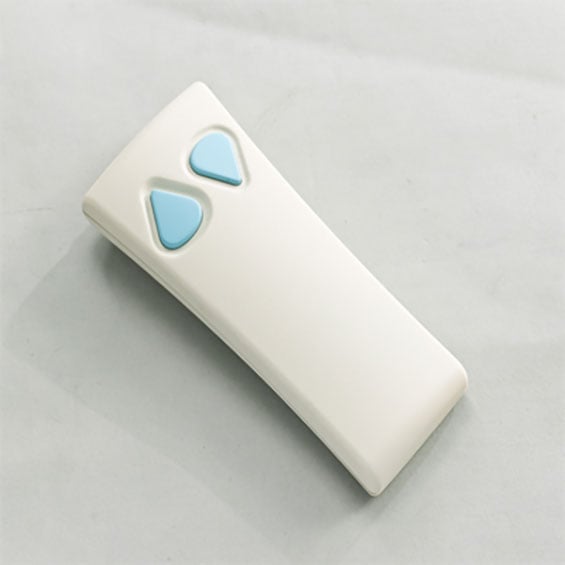

Remote Control2 infrared remotes included
Safety StandardsASME A18.1/A17.5
Safety Sensors5 safety sensors as standard
Safety DevicesOvertravel prevention, motor brake, key switch, retractable seatbelt, armrest and swivel seat safety switches, OSG
Warranty
Motor/Gear5 Years
Parts2 Years
Dimensions
Overall Width23"
Folded Width13"
Height of Seat17" - 20"
Depth of Seat16.36"
Footrest Width14.75"
Footrest to Floor4"
Armrest22" - 26"
Internal Armrest16" - 20"
