Description
Jazzy 600 ES Power Chair from Pride. The Jazzy 600 ES1 features patented Mid-Wheel 6 technology and Active-Trac ATX Suspension for an extraordinary level of performance, maneuverability and the tightest turning radius in the Jazzy line. The Jazzy 600 ES offers true all-around performance indoors and out making it an excellent power chair choice.
Features
- Depth adjustable, limited recline high back seat

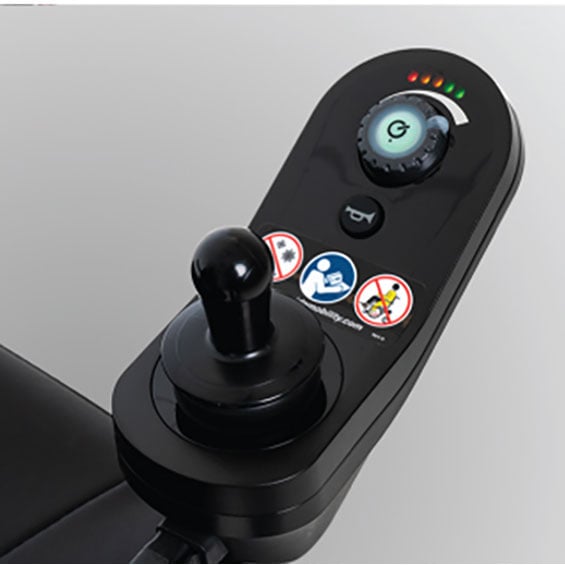

- In-line joystick mount
- Flip-up, height adjustable foot platform
- Black, flat-free, non-marking tires
- 300 lbs. weight capacity
- Up to 4 mph maximum speed
- 20.5" turning radius
- Up to 17 miles per charge
- OMNI-Casters (nylon, spherical-shaped casters) on front and rear to prevent wheel hang-ups
- Side-mounted, easily accessible freewheel levers
- Active-Trac ATX Suspension for enhanced performance over more varied terrain
- Easy front access to batteries
- Group 2: Standard (K0822/K0823)
Specifications
General
Weight Capacity300 lbs
Speed34 mph
Operating Range3,6Up to 17 miles
Turning Radius120.5"
SuspensionActive-Trac with mid-wheel 6 Technology
Ground Clearance12.75"
DrivetrainTwo-motor, mid-wheel drive
ColorsCardinal Red
ChargerOff Board
Controller50A, Dynamic Shark
Battery12 volt, NF-22 (2 required)
Braking SystemRegenerative and electro-mechanical
Dimensions
Width124.5"
Length1,235.5"
Ground to Top of Seat20.5" - 22.5"
Weight
Assembled240 lbs.
Heaviest Piece4124 lbs.
Seat18" wide: 51.8 lbs.; 20" wide 54 lbs
Battery537 lbs.each
Tires

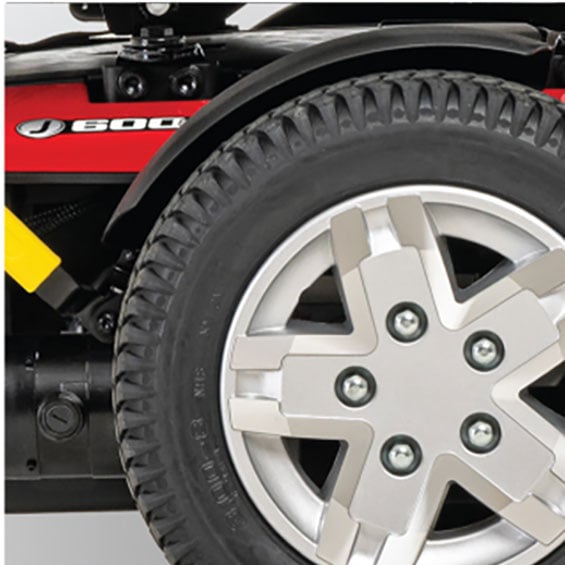

Drive Wheels14" foam filled
Casters6" solid OMNI-Casters
Seat
Width x Depth18" x 18"-20" / 20" x 18" - 20"
Back Height - no headrest20"W - 20"D
Warranty
Frame5 years limited
Drive Train13 Months
Battery13 Months
Electronics13 Months
1. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2. Without front riggings.
3. Varies with user weight, terrain, battery type, battery condition and tire pressure.
4. Does not include seat or battery weights.
5. Battery weight may vary based on manufacturer.
6. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
