FDA Class II Medical Device*

Jazzy Elite HD Power Chair

Model: Jazzy Elite HD

To call find your location

*Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments

Mobility Plus Jazzy Elite HD Power Chair

Description

Jazzy Elite HD Power Chair from Pride. The Jazzy Elite HD features two-motor, front-wheel drive technology and heavy-duty construction. The Jazzy Elite HD features 14" drive wheels for enhanced outdoor performance combined with a front-wheel drive design to provide tight turns for optimal indoor maneuverability in small spaces. Large front wheels add extra absorption for superb climbing capabilities and combine with front anti-tip wheels for handling various terrains with ease.

* Each armrest adds 3-4" to the width of the seat. The minimum doorframe width needed is 25.25"; the width of the base.

Features

Comfortable, depth-adjustable, limited recline high-back seat with headrest

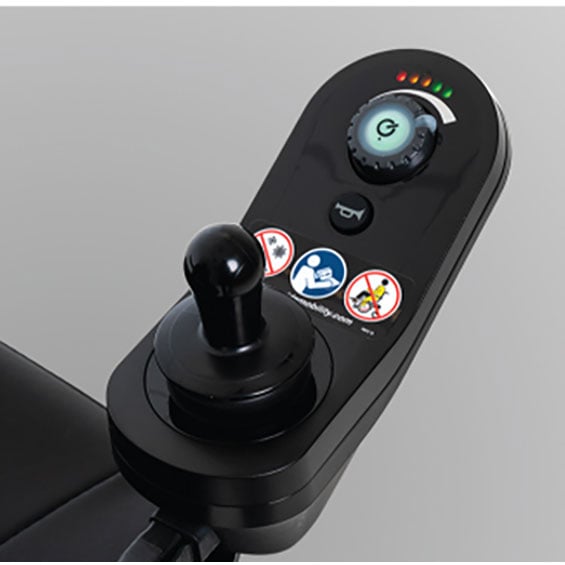

Intuitive controller is easy to operate
Easy rear access to batteries
Color-through shroud
450 lbs. weight capacity
Up to 4 mph maximum speed
24" turning radius
Up to 12.5 miles per charge
Angle-adjustable foot platform offers greater comfort
Front-wheel drive design for excellent maneuverability

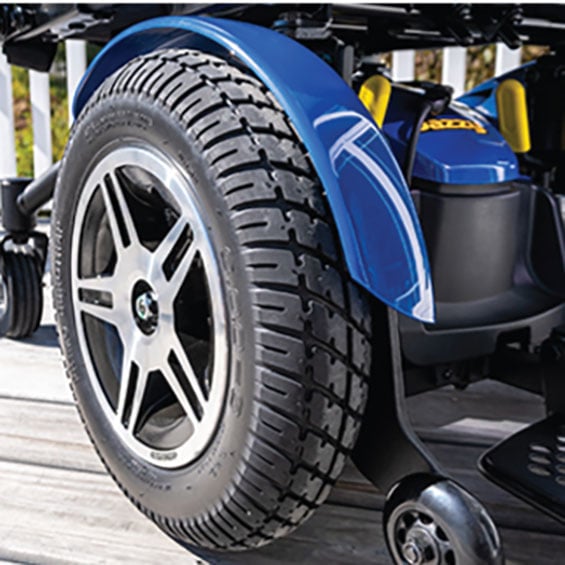

14" knobby tires and optimum weight distribution provide superior traction
60-amp controller
Extended 13-month limited warranty
Group 2 Heavy Duty (K0824/K0825)

Specifications

General

Weight Capacity⁵450 lbs

Speed³4 mph

Operating Range^3,7Up to 12.5 mile

Turning Radius¹24"

SuspensionLimited

Maximum InclineTwo-motor, front-wheel drive

Ground Clearance¹3"

ColorsJazzy Red, Jazzy Blue

ChargerOff Board

Controller60A, Dynamic Shark

Battery12 volt, NF-22 (2 required)

Braking SystemRegenerative and electro-mechanical

Dimensions

Width¹24.25"

Length^1,235.5"

Ground to Top of Seat20" - 22"

Weight

Assembled224 lbs.

Heaviest Piece⁴99 lbs.

Seat18" wide: 51.8 lbs., 20" wide: 54 lbs., 22" wide: 57.6 lbs.

Battery⁶37 lbs.each

Tires

Typefoam filled

Front14"

Drive WheelsFront

Casters6" solid casters

Anti-Tippers3" solid anti-tips

Seat

Width x Depth18" x 18" - 20", 20" x 18" - 20", 22" x 20" - 22"

Back Height - no headrest22"W - 22"D

Warranty

Frame5 years limited

Drive Train13 Months

Battery13 Months

Electronics13 Months

1. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.

2. Without front riggings.

3. Varies with user weight, terrain, battery type, battery condition and tire pressure.

4. Does not include seat or battery weights.

5. Maximum weight capacity is reduced to 400 lbs. (181 kg) on 18" deep seat configurations.

6. Battery weight may vary based on manufacturer.

7. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
