Pride Mobility
FDA Class II Medical Device*

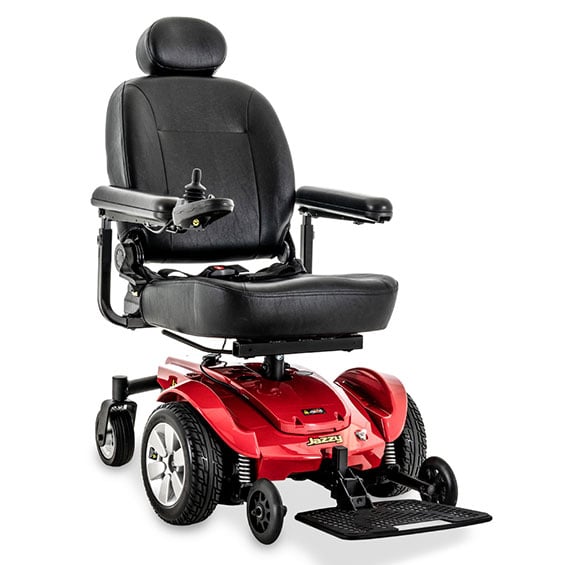

Jazzy Select Power Chair

Model: Jazzy Select
Call for Consultation
*Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments
Mobility Plus Jazzy Select Power Chair
Mobility Plus Jazzy Select Power Chair
Mobility Plus Jazzy Select Power Chair
Description
Specifications
Accessories (18)
Description

Description

Experience the simplicity and maneuverability of the Jazzy Select. Equipped with Active-Trac Suspension and dual motors, this power chair ensures a smooth, comfortable ride over uneven terrain. Mid-wheel drive offers a tight turning radius, making the Jazzy Select a perfect choice both indoors and out.

Features

  • 300 lbs. weight capacity
  • 22.5" turning radius
  • Up to 19.4 miles per charge

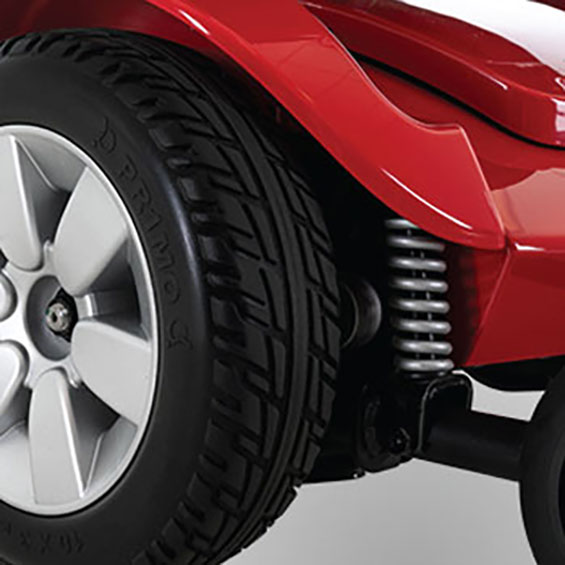

  • Active-Trac Suspension ensures a smooth ride experience over uneven surfaces
  • Mid-wheel drive offers tight turning radius around doorways and corners
  • Comfortable, depth adjustable, limited recline comfort high-back with headrest
  • Dual, in-line motors provide greater performance, range and efficiency

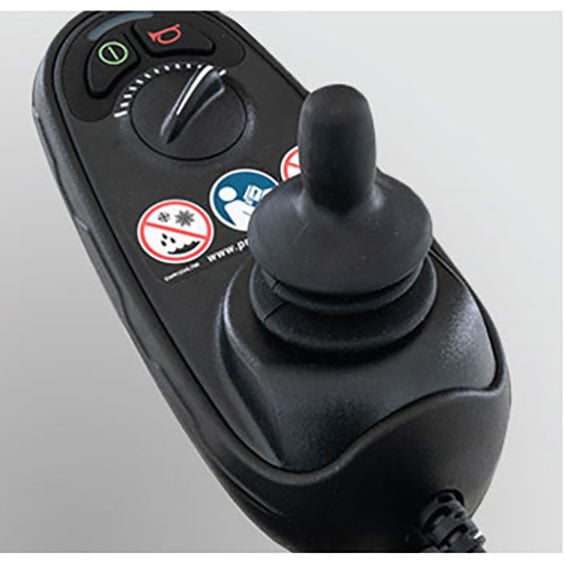

  • Intuitive controller is easy to operate
  • Easy side access to batteries
  • Height and depth adjustable foot platform, offering two positions of height and one position of depth
  • Group 2: Standard (K0822/K0823)
Specifications

Specifications

General
Weight Capacity300 lbs
Speed34.3 mph
Operating Range3,6Up to 19.4 miles
Turning Radius22.5"
SuspensionActive-Trac (ATS)
Ground Clearance1.5"
DrivetrainTwo motor, mid-wheel drive
ColorsJazzy Red
ChargerOff Board
Controller40A, PG GC3
Battery12 volt, U-1 (2 required)
Braking SystemRegenerative and electro-mechanical
Dimensions
Width122.75"
Length1,232.99"
Weight
Assembled194.5 lbs.
Heaviest Piece494 lbs.
Seat50.2 lbs
Battery525.2 lbs.each
Tires
Rear6" solid
Front5" solid
Drive Wheels10" solid
Seat
Stylecomfort, high-back
Width x Depth18" x 18" - 20"
Back Height - no headrest16" x 16" - 18", 18" x 18" - 20", 20" x 18" - 20"
Warranty
Frame5 years Limited
Drive Train13 Months
Battery13 Months
Electronics13 Months
1. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2. Without front riggings.
3. Varies with user weight, terrain, battery type, battery condition and tire pressure.
4. Does not include seat or battery weights.
5. Battery weight may vary based on manufacturer.
6. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
