CSL500 Helix Curved Stair Lift
Harmar

CSL500 Helix Curved Stair Lift

Model: CSL500


Description

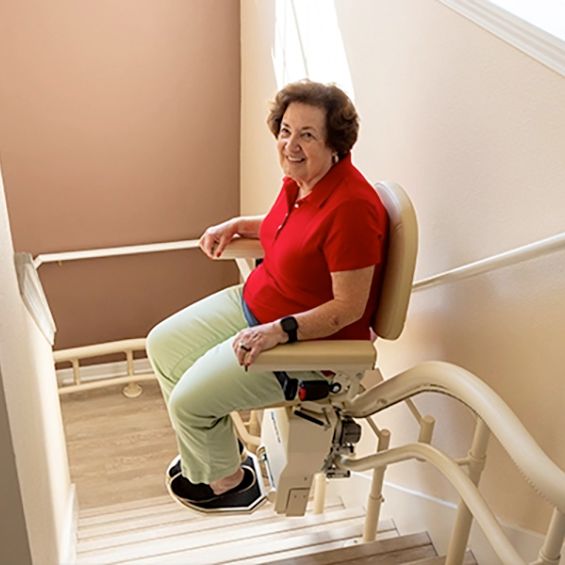

Curves, landings, tight turns – oh, my! The Helix curved stairlift is a great solution to help you access every floor in your home with ease, no matter the configuration. These lifts are custom-made to perfectly fit your unique staircase and your home's decor.


These curved stairlifts can be installed on any staircase, including those with sections, curves, and multiple landings. The rail system is attached to the stairs and floor so no structural changes are necessary.


Features

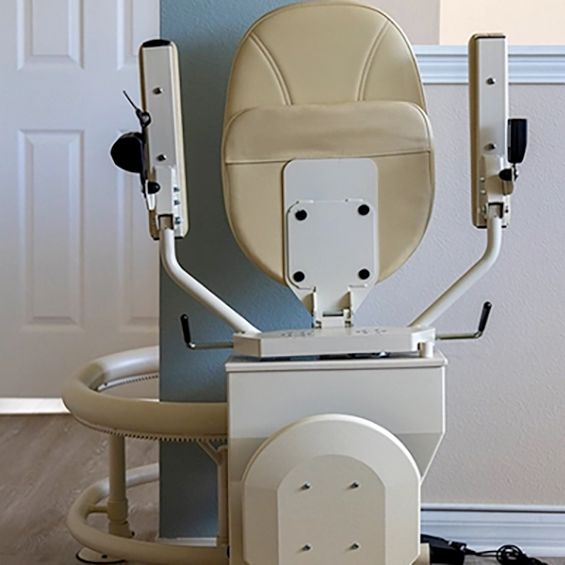

Narrower profile

Extremely quiet, smooth ride

Fabricated to perfectly fit your unique staircase

True-Curve rail with advanced bending technology creates smoother turns

Comes with remote controls to call/send seat

Equipped with swivel seat for easy and safe entry and exit at upper landing

Simple-connect rails and lighter chassis for easy installation


Specifications


General

Weight Capacity

350lbs/159kg

Speed

20 ft. / min.

Drive System

Rack and Pinion Gear

Incline Limits

up to 52º

Electrical Requirements

120V - 220V AC

Battery

24V DC

Safety Devices

Safety Edges; Emergency Stop

Track Type

Steel, Powder Coated

Travel

20' standard; 164' Maximum

Warranty

Motor/Gear

Limited Lifetime

Parts

2 Years

Battery

1 Year

Dimensions

Folded Width

16"

Depth of Seat

15"

Footrest Width

11"

Footrest Deep

12"
