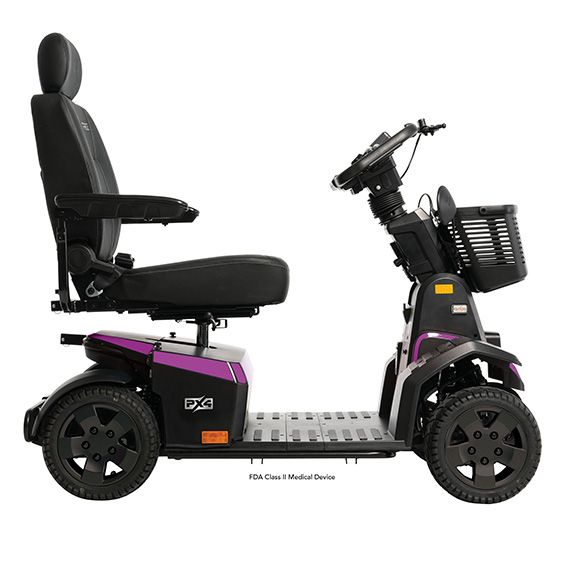

PX4 SC134 4-Wheel Mobility Scooter
Model: SC134
Description
The PX4 is the newest way to level up your customer's outdoor mobility experience. This is the first scooter in its class to offer NFC (Near-Field Communication) technology for its ignition system. Simply place or tap the NFC key fob near the receiver on the side of the tiller to start the scooter. It's easy, enhances the experience, and adds an extra layer of security since the fobs are unique to each unit. With seat sizes ranging from 18" to 22", the PX4 has plenty of room to breathe for any eager traveler. A full suspension equals unparalleled comfort while exploring parks and urban landscapes. A water-resistant user interface, enhanced lighting package, and memory foam seating provide premium convenience on all of your customers' travels.
* Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments.*
Features
500 lb. weight capacity
Impressive top speed of 9.3 mph
Cruises up to 23.4 miles on a single battery charge
Durable color-through shrouds
Depth adjustable memory foam seating with 6" slider
Seat size options that include 18x18-20", 20x18-20", 22x20-22"

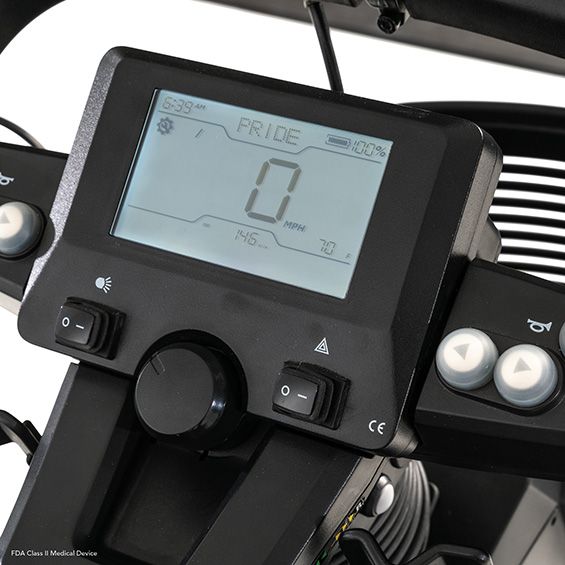

Delta steering wheel with LCD console
Water-resistant user interface
Full LED lighting package for maximum visibility and safety
Pneumatic front and rear tires
Full suspension to ensure a smooth ride over uneven terrain
Supplemental hand brake for additional stopping power
Choice of five unique vinyl accent color options with a 7-year outdoor durability rating
Specifications
General
Weight Capacity
500 lbs
Speed1
9.3 mph
Operating Range1,2
Up to 23.4 miles per charge
Suspension
Full
Turning Radius3
82.28"
Ground Clearance3
3.5" to motor, 4.4" at mid-deck
Drive Wheels
Rear-wheel drive, sealed transaxle
Colors
Aluminium, Violet, Blue, Sunflower, Red, White Camo, Black Camo, Desert Camo, Jungle Camo
Charger
8 amp, off-board
Battery3,4
(2) 12V, sealed lead-acid, non-spillable deep-cycle Size: 75Ah
Dimensions
Width3
27.83"
Length3
55.9"
Deck to Top of Seat
16.5" - 18.4"
Ground to Top of Seat
24.2"-24.6"
Weight
Assembled3,5
351.4 lbs.
Base3,5
201.2 lbs
Heaviest Piece3,5
201.2 lbs
Seat3
52.6 lbs.
Battery4
48.8 lbs each
Tires
Rear3
13" pneumatic
Front3
13" pneumatic
Seat
Style3
High Back Captain Seat
Color
Black vinyl
Width x Depth
18" X 18-20"
Optional Seat
20" X 18-20", 22" X 20-22"
Warranty
Frame
Lifetime Limited
Drive Train
2-year Limited
Battery
6 months
Electronics
2-year Limited
1. Varies with user weight, terrain type, battery amp-hour rating (Ah), battery charge, battery condition, tire type and tire condition. This specification can be subject to a variance of +10%, -5%
2. Tested in accordance with ANSI/RESNA, MC Vol2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
3. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or -) 3%.
4. Battery weight may vary based on battery manufacturer.
5. Includes standard seat weight.
