AL301XLHD Heavy Duty Fusion Lift - XL
Harmar

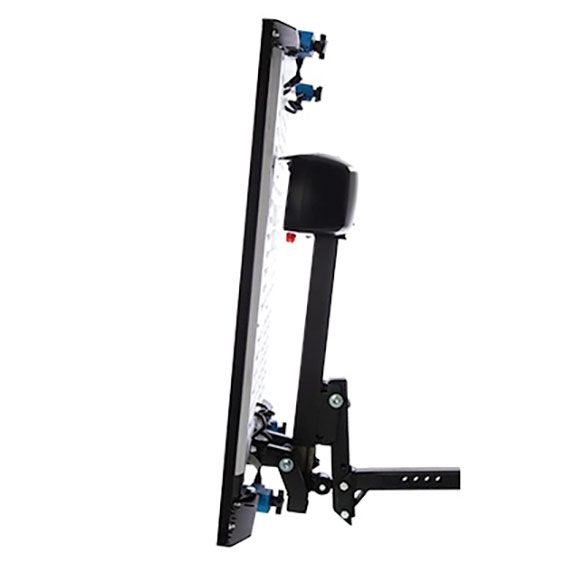

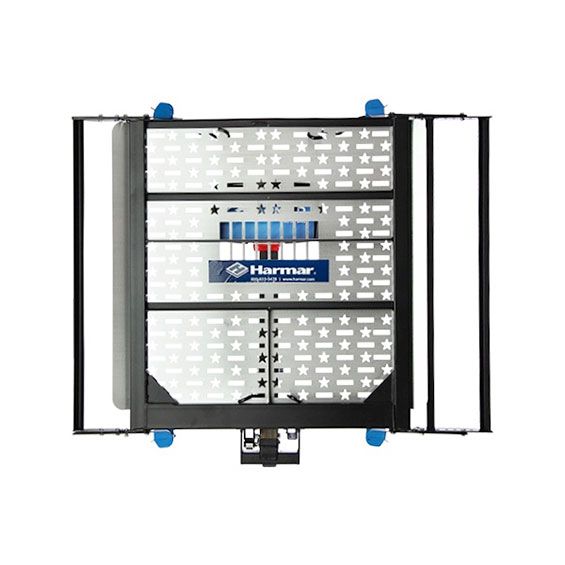

AL301XLHD Heavy Duty Fusion Lift - XL

Model: AL301XLHD


Description


Designed to lift the widest variety of power chairs and scooters, the AL301XLHD is a premier choice to help make your travels easier! The adjustable wheel cradles and self-tensioning Q’Straint retractors will keep your larger mobility device safe and secure as you hit the road.

  • The AL301XLHD is optimal for larger scooters and power chairs.
  • Compatible with minivans, SUVs, trucks, and vans.
  • This lift series is complete with fully powered lifting and folding.


Features


Carries larger power scooters or power chairs with no modifications required.

Self-tensioning, Q'Straint retractors/front and rear cradles

Extra large 36" x 39" aluminum deck/adjustable cradles extend up to 53" (Optional, no charge item)

License plate mount included

Swing-Away option available

Class III hitch adapter standard (AL123X); drop adapter upgrades available.


Specifications


General

Compatible with

Scooters, Power Chairs

Platform size

36" X 39" Aluminum Deck; Adjustable Cradle Extends up to 53"

Lifting capacity

400 lbs

Installed weight

102 lbs

Securement

Self-tensioning Q’Straint retractors & wheel cradle

Hitch height

5"-18"

Hitch Class

Class III or greater

Options

Battery pack, Swing-Away, Scooter or Power Chair covers

Warranty

3-Year Transferable
