Description

STAIRS AND LIFT IN ONE

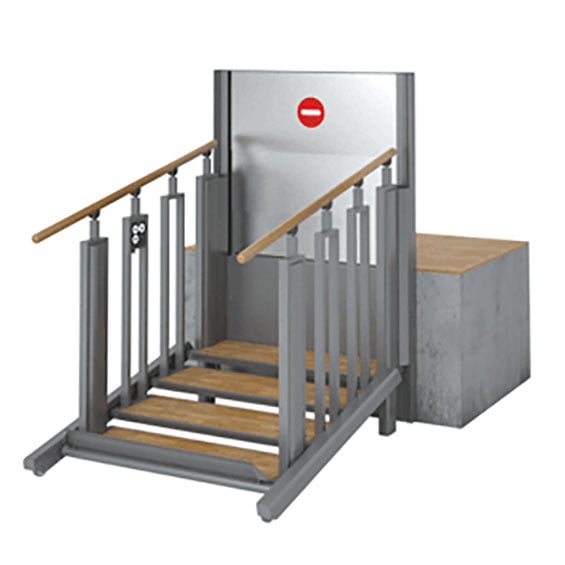

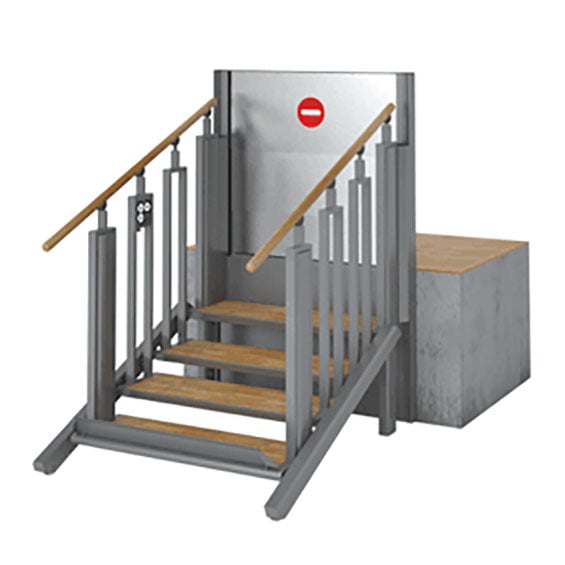

The FlexStep is the perfect solution to conquer split levels for all wheelchair users and walking impaired people in areas with minimal space. It is the most space-saving lift on the market and at the same time it offers a design to satisfy even the most fastidious user.

FLEXIBLE DESIGN

FlexStep is an innovative 2-in-1 solution that transforms stairs into a platform lift for wheelchair users and walking impaired people. The FlexStep is designed to merge into the environment where it is installed. We offer numerous options to customize step inserts and handrail types, and also balustrades, materials and colors can be tailored to a perfect match. You may even supply your own flooring materials for the steps to achieve the optimal integration into your decor.

EQUAL OPPORTUNITIES

In daily use the FlexStep is a completely ordinary staircase with a classic design, which can to a great degree be adjusted to individual requirements. With a single press of a button the FlexStep transforms into a lift, which comfortably and safely raises the user to the upper level.

SAFETY ABOVE ALL

The FlexStep is a very safe product thanks to the many safety measures guaranteeing non-hazardous operation of the convenient platform lift. The product comprises four intelligent, synchronized engines safeguarding a stable and safe transportation between levels, and as standard the FlexStep is furnished with all necessary safety measures.

The FlexStep is CE marked according to the EU Machinery Directive and thus meets the strictest safety regulations.

FUNCTION

For any user, the operation is quite simple. Both on the upper and lower level, the stairs can be transformed into a lift and once on the lift, the user can control the lift as required.

FLEXSTEP MODELS

The FlexStep is available in four different standard step widths: 27.6", 31.5", 35.4" and 39.4". Please contact our sales team or local distributor if your specific needs are not shown here - each model is available in hundreds of configurations and we are experts in adaptation to the surroundings and in matching our customer requirements.

Features

  • Innovative, effective design for disabled access
  • High Quality European product
  • Easy to integrate in both new and existing buildings
  • Both indoor and outdoor use
  • No structural alterations are necessary, just a level floor
  • Safe to use
  • Runs even during power failures

Specifications

General
Weight Capacity880 lbs.
Lift Speed2"/sec.
Unit Weight246.6 lbs
Step models8 versions: 2 - 6 steps
Duty cycle2 min. operation every 5 min.
Required Power230 VAC – 10 A
Dimensions
Platform sizemin. (L) 35.4 in. x (W) 27.5 / 31.5 / 35.4 / 39.4 in.
Lifting heightup to 49.2 in.
Inside step width27.6"/ 31.5"/ 35.4" / 39.4"
