Description

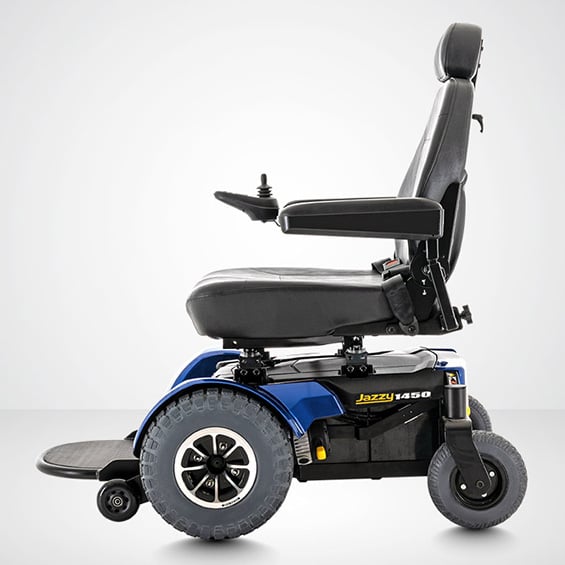

With a robust and heavy-duty design, the Jazzy® 1450 ensures powerful performance with front-wheel drive and efficient motors. Knobby drive tires provide the traction you need over uneven terrain. With speeds up to 4.5 mph, live life on your terms.
Features
- Black vinyl high-back seat
- Flat-free drive tires
- Universal, fixed, in-line joystick mount
- Large 17" x 13" foot platform
- 600 lbs. weight capacity
- Up to 4.5 mph maximum speed
- 26.5" turning radius
- Up to 15.7 miles per charge
- Maximum performance, extremely efficient motor package
- HCPCS Code: Group 2: Very Heavy Duty (K0826/K0827) Single Power Very Heavy Duty (K0839)
Specifications
General
Weight Capacity600 lbs
Speed3,6Up to 4.9 mph
Operating RangeUp to 16.5 miles
SuspensionSwing Arm
Turning Radius126.5"
Ground Clearance11.5" at anti-tips
Drive WheelsFront-wheel drive, 14" solid
ColorsViper Blue, Candy Apple Red
Charger8A, off-board
Controller90A, PG VR2
Battery12 volt, Group 24 (2 required)
Electro-Mechanical BrakesRegenerative and electro-mechanical
Dimensions
Width129.25"
Length1,238.25"
Deck to Top of Seat20.5" - 22.5"
Weight
Assembled351 lbs
Heaviest Piece4195 lbs.
Without Batteries4195 lbs.
Seat52 lbs. (high-back)
Battery52 lbs. each
Tires
Rear9" solid casters
Front4" solid anti-tips
Seat
Width x Depth22" x 20" up to 24" W x 26" W x 24" D
Warranty
FrameK0826/K0827 Models: Lifetime limited warranty on frame; K0839 Models: Lifetime limited warranty on frame;
BatteryK0826/K0827 Models: 13-month limited on batteries; K0839 Models: 18-month limited warranty on drive motors;
ElectronicsK0826/K0827 Models: 13-month limited on electronics; K0839 Models: 2-year warranty on electronics;
1. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2. Without front riggings.
3. Varies with user weight, terrain, battery type, battery condition and tire pressure.
4. Does not include seat or battery weights.
5. Battery weight may vary based on manufacturer.
6. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
