Jazzy 1450 Power Chair
Pride Mobility

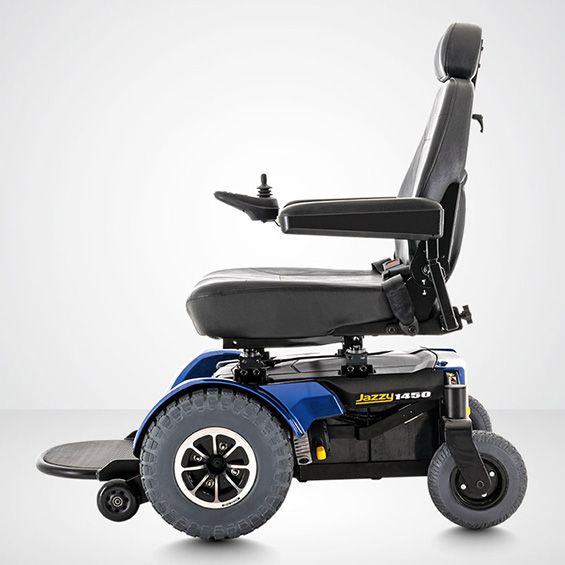

Jazzy 1450 Power Chair

Model: Jazzy 1450


Description


With a robust and heavy-duty design, the Jazzy® 1450 ensures powerful performance with front-wheel drive and efficient motors. Knobby drive tires provide the traction you need over uneven terrain. With speeds up to 4.5 mph, live life on your terms.


Features


Black vinyl high-back seat

Flat-free drive tires

Universal, fixed, in-line joystick mount

Large 17" x 13" foot platform

600 lbs. weight capacity

Up to 4.5 mph maximum speed

26.5" turning radius

Up to 15.7 miles per charge

Maximum performance, extremely efficient motor package

HCPCS Code: Group 2: Very Heavy Duty (K0826/K0827) Single Power Very Heavy Duty (K0839)


Specifications


General

Weight Capacity

600 lbs

Speed3,6

Up to 4.9 mph

Operating Range

Up to 16.5 miles

Suspension

Swing Arm

Turning Radius1

26.5"

Ground Clearance1

1.5" at anti-tips

Drive Wheels

Front-wheel drive, 14" solid

Colors

Viper Blue, Candy Apple Red

Charger

8A, off-board

Controller

90A, PG VR2

Battery

12 volt, Group 24 (2 required)

Electro-Mechanical Brakes

Regenerative and electro-mechanical

Dimensions

Width1

29.25"

Length1,2

38.25"

Deck to Top of Seat

20.5" - 22.5"

Weight

Assembled

351 lbs

Heaviest Piece4

195 lbs.

Without Batteries4

195 lbs.

Seat

52 lbs. (high-back)

Battery

52 lbs. each

Tires

Rear

9" solid casters

Front

4" solid anti-tips

Seat

Width x Depth

22" x 20" up to 24" W x 26" W x 24" D

Warranty

Frame

K0826/K0827 Models: Lifetime limited warranty on frame; K0839 Models: Lifetime limited warranty on frame;

Battery

K0826/K0827 Models: 13-month limited on batteries; K0839 Models: 18-month limited warranty on drive motors;

Electronics

K0826/K0827 Models: 13-month limited on electronics; K0839 Models: 2-year warranty on electronics;

1. Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.

2. Without front riggings.

3. Varies with user weight, terrain, battery type, battery condition and tire pressure.

4. Does not include seat or battery weights.

5. Battery weight may vary based on manufacturer.

6. Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
